    Full hydraulic-mounted Geological Drilling Rig Diesel Engine With Flexible Operating System

    Ask Lasest Price
    Brand Name : SINOVO
    Certification : CE/GOST/ISO9001
    Model Number : SHY-5A/5C/6
    Delivery Time : ON STOCK
    Payment Terms : T/T&L/C
    • Product Details
    • Company Profile

    Full hydraulic-mounted Geological Drilling Rig Diesel Engine With Flexible Operating System

    Full hydraulic-mounted Geological Drilling Rig Diesel Engine With Flexible Operating System


    There are many varieties of drilling equipment on the market. Some of frequently used ones include oil drilling rigs, surface exploration drilling rigs, tunnel drilling rigs water well drilling rigs, and geological drilling rigs. Geological drilling rigs are often used for coring, which retrieve core samples from the ground. Reprehensive core and rock debris are often obtained to help determine the subsurface geology and amount of mineral resources. Generally, the drilling depths of geological drilling rigs are from 2m to15000m. We are a Chinese geological drilling rig manufacturer and supplier, mainly producing core drilling rigs and mobile drilling rigs. Geological drilling rigs-spindle type are ideally suited for exploration, mining, water well and pile grouting hole drilling operations, featuring ease of transport, great mobility and compact structure.Geological drilling rigs-full hydraulic-mounted trailer and crawler type with hydraulic support mast and legs are increasingly used for engineering geological exploration, superficial-zone petroleum and natural gas mining, mine gallery ventilation and water discharge tunnel drilling. Besides geological drilling rigs, we at SINOVO International Company also provide CFA drilling equipment, diaphragm wall grabs, piling rigs, and more. Our products utilize high quality diesel engines, which have the advantages of low emission, low vibration and high efficiency. So they are friendlier to the environment.Please contact us for more information. We can assure you that you will find the exact drilling equipment you need, at the price you want.


    Full hydraulic core drilling rig

    Full hydraulic-mounted trailer and crawler type with hydraulic support mast and legs, widely applied in engineering geological exploration, superficial-zone petroleum and natural gas mining, mine gallery ventilation and water discharge tunnel drilling.


    Main Features:
    -Adapt full hydraulic driving, moving with crawlers itself
    -Drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure
    -Rotator is fed and driven with a system connecting the spindle and oil cylinder with chain
    -Mast could be adjusted for its drilling hole with a low center of gravity and good stability
    -Rig provides operator with a nice field of vision and wide and comfortable working condition
    -Diesel engine, hydraulic pump, main valves, motors,crawler reducers and key hydraulic spare parts are all adapted

    famous brands products which are easy to buy and maintenance.
    -Big torque, powerful driving force, rational and practical design,

    lower noisy advanced controlling mode , external appearance,

    a compacted structure, a reliable function, and a flexible operating system.

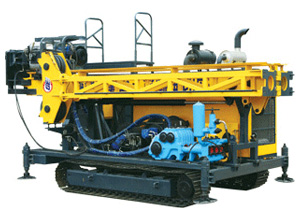

    SHY-5A Full Hydraulic Core Drilling Rig

    SHY-5A Technical Parameters



    EURO standards

    U.S. standards

    Diesel Engine

    Power

    145kw

    194hp

    Drilling Capacity

    BQ

    1500m

    4921feet

    NQ

    1300m

    4265feet

    HQ

    1000m

    3281feet

    PQ

    680m

    2231feet

    Rotator Capacity

    RPM

    0-1050rpm

    0-1050rpm

    Max. Torque

    4650Nm

    3430lbf.ft

    Max. Lifting Capacity

    15000kg

    33721lbf

    Max. Feeding Power

    7500kg

    16861lbf

    Foot Clamp

    Clamping Diameter

    55.5-117.5mm

    2.2-4.6inch

    Main Hoister Lifting Force(Single rope)

    7700kg

    17310lbf

    Wire Hoister Lifting Force

    1200kg

    2698lbf

    Mast

    Drilling Angle

    45°-90°

    45°-90°

    Feeding Stroke

    3200mm

    126inch

    Slippage Stroke

    1100mm

    43inch

    Other

    Weight

    8500kg

    18739lb

    Transport Way

    Crawler

    Crawler

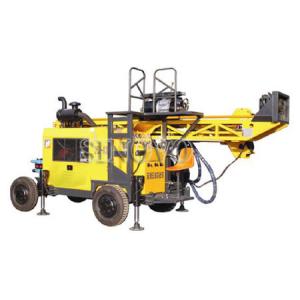

    SHY-5C Full Hydraulic Core Drilling Rig

    SHY-5C Technical Parameters



    EURO standards

    U.S. standards

    Diesel Engine

    Power

    145kw

    194hp

    Drilling Capacity

    BQ

    1500m

    4921feet

    NQ

    1300m

    4265feet

    HQ

    1000m

    3281feet

    PQ

    680m

    2231feet

    Rotator Capacity

    RPM

    0-1100rpm

    0-1100rpm

    Max. Torque

    4600Nm

    3393lbf.ft

    Max. Lifting Capacity

    15000kg

    33721lbf

    Max. Feeding Power

    7500kg

    16861lbf

    Foot Clamp

    Clamping Diameter

    55.5-117.5mm

    2.2-4.6inch

    Main Hoister Lifting Force(Single rope)

    7700kg

    17310lbf

    Wire Hoister Lifting Force

    1200kg

    2698lbf

    Mast

    Drilling Angle

    45°-90°

    45°-90°

    Feeding Stroke

    3200mm

    126inch

    Slippage Stroke

    950mm

    37inch

    Other

    Weight

    7000kg

    15432lb

    Transport Way

    Trailer

    Trailer


    SHY-6 Full Hydraulic Core Drilling Rig

    SHY-6 Technical Parameters



    EURO standards

    U.S. standards

    Diesel Engine

    Power

    175kw

    235hp

    Drilling Capacity

    BQ

    2000m

    6562feet

    NQ

    1600m

    5249feet

    HQ

    1300m

    4265feet

    PQ

    1000m

    3281feet

    Rotator Capacity

    RPM

    0-1100rpm

    0-1100rpm

    Max. Torque

    6400Nm

    4720lbf.ft

    Max. Lifting Capacity

    220kn

    49458lbf

    Max. Feeding Power

    110kn

    24729lbf

    Foot Clamp

    Clamping Diameter

    55.5-117.5mm

    2.2-4.6inch

    Main Hoister Lifting Force(Single Rope)

    120kn

    26976lbf

    Wire Hoister Lifting Force

    15kn

    3372lbf

    Mast

    Drilling Angle

    45°-90°

    45°-90°

    Feeding Stroke

    3200mm

    126inch

    Slippage Stroke

    1100mm

    43inch

    Other

    Weight

    9600kg

    21164lb

    Transport Way

    Crawler

    Crawler
